Electric vehicle chargers

Do you own an EV? Are you fed up with the slow charging you get from plugging into a standard 3 pin socket?

We have the solution you’ve been looking for!



EV Chargers by Powerex are simple, yet ever so powerfull

If you’re looking for a EV Charging solution for your business or for your home, we have a solution – and we have the necessary connecting leads too

Get a free estimate today!

We recommend and install EO Charging systems. EO Charging is the leader in electric vehicle charging in the UK, they have charging solutions for fleets, business and the home, and their charging points are compatible with all electric vehicles

EV Chargers for Home

Home Charging, EO Mini Pro 2, smart home charger, up to 7.2KW charging capacity, compact size, universal socket (type 1 or 2)

EV Chargers for Work

App enabled commercial charger. Up to 22KW, Active load management, restrict access via RFID or the EO App

EV Charger Leads

Type 1 to type 2 leads, type 2 to type 2 leads, we can supply any combination to suit your car

EV Chargers for home

EO Mini Pro 2

Meet the EO Mini Pro 2 – small in size, big in power. This is the latest smart home charger from EO designed and built for the space and energy conscious EV driver.

Specifications

  • Up to 7.2KW (40km of driving per hour of charge)
  • Universal socket
  • Dimensions – 175mm x 125mm x 125mm
  • Smartphone controlled – monitor energy usage and charge scheduling
  • Solar charging – power your car using green energy (optional extra)
  • Home power balancing – avoid overloading your electrical supply (recommended extra)
  • 3year manufacturer warranty

Small: World’s smallest smart charger, perfect for the everyday electric vehicle driver.

Smart: Manage, monitor and schedule your charging sessions with the EO Smart Home app.

Safe: Home power balancing ready and locking feature to prevent others from using your charger



Installation



EO products must be installed by a certified EO installer to uphold the warranty, and to unlock the smart features. The team at Powerex are EO approved installers, so enquire with us today

EO Mini Pro 2 – with Power Balancing

We highly recommend adding this power balancing accessory, this will allow your charger to ramp up and down as per the limitations of your power supply – removing the threat of overloading



Specifications

The EO Mini Pro 2 with power balancing has all of the features of the EO Mini Pro 2 with the added benefit of being able to monitor your household power usage and ramp your charging up and down as required so you get maximum charging capacity without the risk of overloading your household capacity

How does it work?

The EO Mini Pro 2 offers power balancing at home with an additional CT clamp. It can read the incoming feed to the building, take into account the building energy usage and calculate a final amount of power that is then distributed to the charger.

EO’s latest home charger reads the incoming power feed every second and reduces the power output when other home appliances, such as a water heater, are turned on. Once the water heater is turned off, the charger will automatically read the available power and increase the power output to the maximum available level.



Installation



EO products must be installed by a certified EO installer to uphold the warranty, and to unlock the smart features. The team at Powerex are EO approved installers, so enquire with us today

EO Mini Pro 2 – with Solar charging

Want to charge your car using green energy? The EO Mini Pro 2 connects to your solar panels* using EO’s innovative solar matching functionality.



Specifications

The EO Mini Pro 2 with solar charging has all of the features of the EO Mini Pro 2 with the added benefit of being able to charge your car from your solar panels

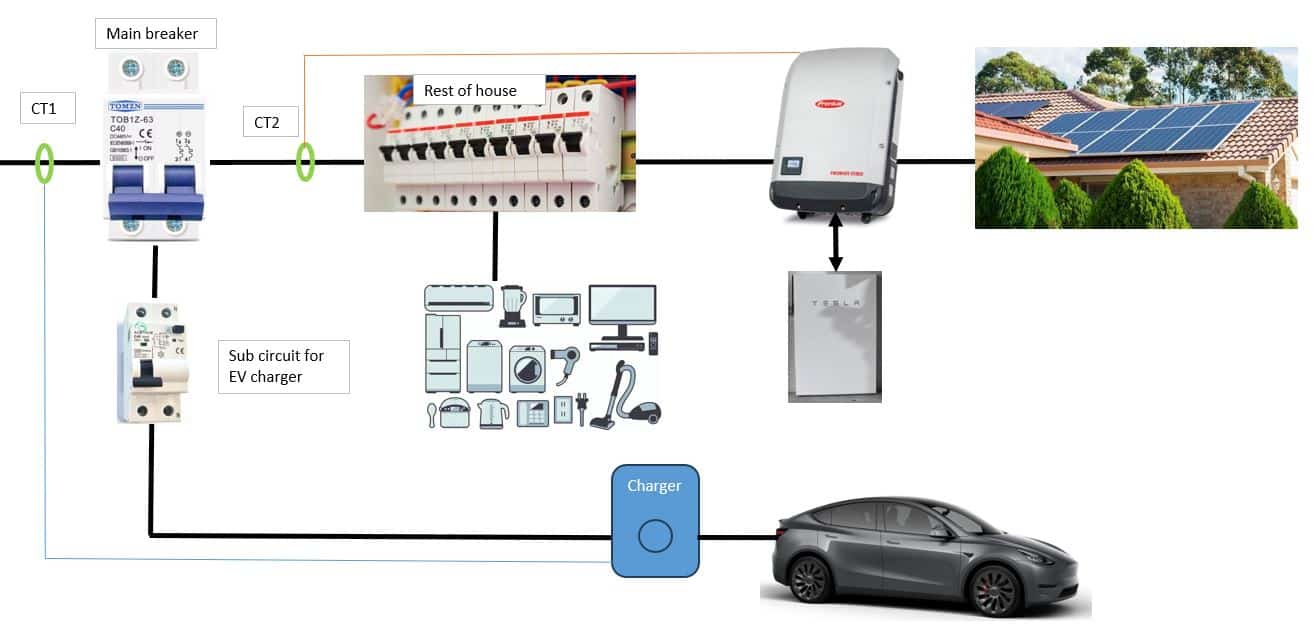

How does it work?

The EO Mini Pro 2 reads the power being generated by your solar panels and sets its charging rate to match the output of the solar array. You can set this charging window during the day to top up your vehicle from the sun.

Using the EO Smart Home app, you can set when your vehicle will charge according to the output of your solar array. Here’s how it works:

1) Your vehicle will charge at the same rate as the output of the solar array.

2) If the solar output drops below the specified minimum rate (e.g. sun goes behind a cloud) then the vehicle will charge at the minimum rate. It is not safe for a vehicle to repeatedly stop and start charging and so the minimum rate will always guarantee the charging rate.

3) The Recommended minimum rate is 6A.

* Solar system is not included



Installation



EO products must be installed by a certified EO installer to uphold the warranty, and to unlock the smart features. The team at Powerex are EO approved installers, so enquire with us today

EV Chargers for Work

Workplaces, Destinations & Developments

Attract and retain customers with EO’s modular and scalable business charging solution.

Work Place Charging

Modular, scalable & future proof charge points with intelligent software

Meet the EO Genius app-enabled commercial charge point. Future proof smart hardware suitable for the EVs of today and tomorrow.

Specifications

  • Charge up to 22kW
  • Built-in active load management
  • Restrict access using RFID or EO App
  • Charging insights via the EO Cloud
  • Dimensions – 175mm x 125mm x 125mm



Installation



EO products must be installed by a certified EO installer to uphold the warranty, and to unlock the smart features. The team at Powerex are EO approved installers, so enquire with us today

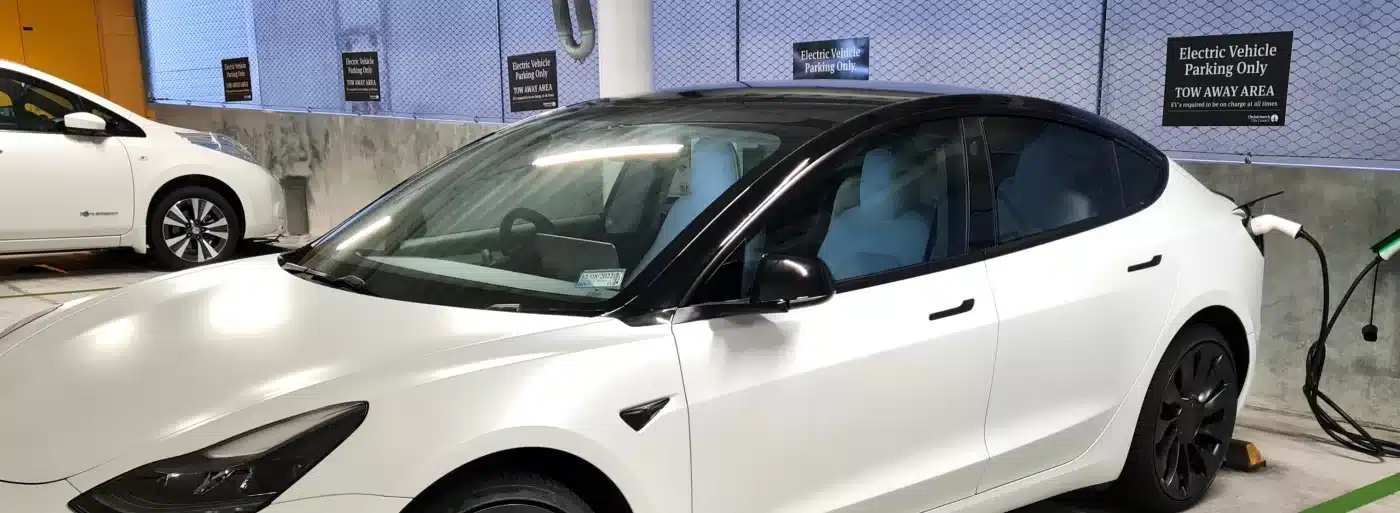

Destination Charging

Car parks to retail, transform any location into an electric vehicle charging destination.

Attract and retain EV driving customers with EO’s industry leading app-enabled charging experience.

Connect the EO Genius charger to the EO Hub and unlock smart-charging technology. Connect up to 30 charge points per EO Hub.

Specifications

  • Charge up to 22KW
  • Built in active load management
  • If required, restrict access via RFID or EO App
  • Charge scheduling
  • Telematics integration
  • Manage and monitor energy usage
  • Cloud connected via EO Cloud
  • Hub Dimensions – 175mm x 125mm x 95mm
  • Revenue Generation – Monetise your charge points and charge drivers to plug-in



Installation



EO products must be installed by a certified EO installer to uphold the warranty, and to unlock the smart features. The team at Powerex are EO approved installers, so enquire with us today

EV Ready Developments

Prepare your residential or commercial development for future electric vehicle drivers.

Times are changing, future proof your development for the EV drivers of today and tomorrow.

Consultation

We understand that installing electric vehicles is new for many developers. We’ll guide you through the process from design through to deployment and can take care of upgrading your existing electrical supply for you.

Warranty

Reliability and ease of use is the key for electric vehicle charging, that’s why we offer a 3 year product warranty as standard.

Generate Revenue

Want to make charging free for residents but charge visitors for each plug-in session? Setup billing using the EO Cloud with fixed cost per session or kW/hr billing.

Smart Billing

Multiple residents combined with multiple sites need not worry you. Our centralised management and billing platform (EO Cloud) makes managing charging in apartments or large developments simple.

Funded solutions

Minimise upfront investment and lease charging infrastructure with our ‘Charging-as-a-Service’ funding model (minimum three-year term).

Installation



EO products must be installed by a certified EO installer to uphold the warranty, and to unlock the smart features. The team at Powerex are EO approved installers, so enquire with us today

Charging leads

Fast chargers and public (often free) chargers all require a charging lead that is “Type 2”. Depending on the age and model of your car will determine which of the below leads you will need

Type 2 to Type 1 adapter Charge converter cable



EV Charging cord Type 2 to Type 1 cable so you can charge your type 1 electric vehicle such as generation 1 Nissan Leaf at a charging station with a type 2 Socket.

The majority of New Zealand public points use Type 2 (also called Mennenkes) connection.
So this adapter will convert the Type 2 (Mennenkes) free charging station to the Nissan Leaf Type 1 (J1772) style so you can make use of free charging.

The car charging cable is flexible even in low temperatures. The 32A rating allows you to charge at around 30km of charge per hour.

Specifications:
  • Cable length 5m
  • Current 32A 7.4KW
  • Single phase
  • Voltage 230v ac
  • Specifications: TUV (ICE62196) CE
  • Waterproof grade IP65
  • Plug Type
    • Type 1 J1772 for the car connector
    • Type 2 Mennenkes charger end

Works with most Japanese Imports EV’s and PHEV’s

Type 2 to Type 2 adapter Charge converter cable



EV Charging cable Type 2 to Type 2 for electric vehicle charging.

The majority of New Zealand’s public charging points use Type 2 also called Mennenkes connection.
This cable will allow you to make use of the many free charging stations around New Zealand.

The cable is flexible even in low temperatures. The 32A rating allows you to charge at around 30km of charge per hour.

Specifications:
  • Cable length 5m
  • Current 32A 7.4KW
  • Single phase
  • Voltage 230v ac
  • Specifications: TUV (ICE62196) CE
  • Waterproof grade IP65
  • Plug Type
    • Type 2 Mennekes charger end. Male and female

Works with all NZ new EV’s and English imports.

You can learn more about EO Chargers on the EO Charging website. There you will find a wealth of information about their chargers and how they work
